Technical Specifications
Input DC (PV Side)
| Parameter | 12K | 14K | 16K |
|---|---|---|---|
| Recommended Max PV Array Size (kW) | 24 | 28 | 32 |
| Max Usable PV Input Power (kW) | 19.2 | 22.4 | 22.4 |
| Max Input Voltage (V) | 550 | 550 | 550 |
| Rated Voltage (V) | 380 | 380 | 380 |
| Start-up |
Solis Single Phase Low Voltage Energy Storage Inverters S6-EH1P(12-16)K03-NV-YD-L
Features
- Generator Compatibility: Extends backup duration during grid power outages.
- Microgrid Capability: Multiple inverters can operate together to form a microgrid.
- Dual Backup Ports: Intelligent control of critical and non-critical loads.
- High Surge Capability: Supports 200% overload for 10 seconds.
- Seamless Switchover: Automatic switchover time is <4ms, providing seamless transitions from grid to backup.
- High MPPT Input Current: Supports up to 40A MPPT current input, suitable for 182mm/210mm solar panels.
- Battery Protection: Integrated battery treatment and protection functions, more friendly to batteries.
- Parallel Operation: Supports multiple inverters in parallel to form a single-phase or three-phase system, with a maximum power of 160kW.
- AC Coupling: Supports AC coupling to retrofit existing solar systems.
- High Charging/Discharging Current: Maximum 350A charging and discharging current, providing higher energy density.
Description
Brand
Brand
Solis
Reviews (0)
Attachment
Shipping & Delivery
Related products

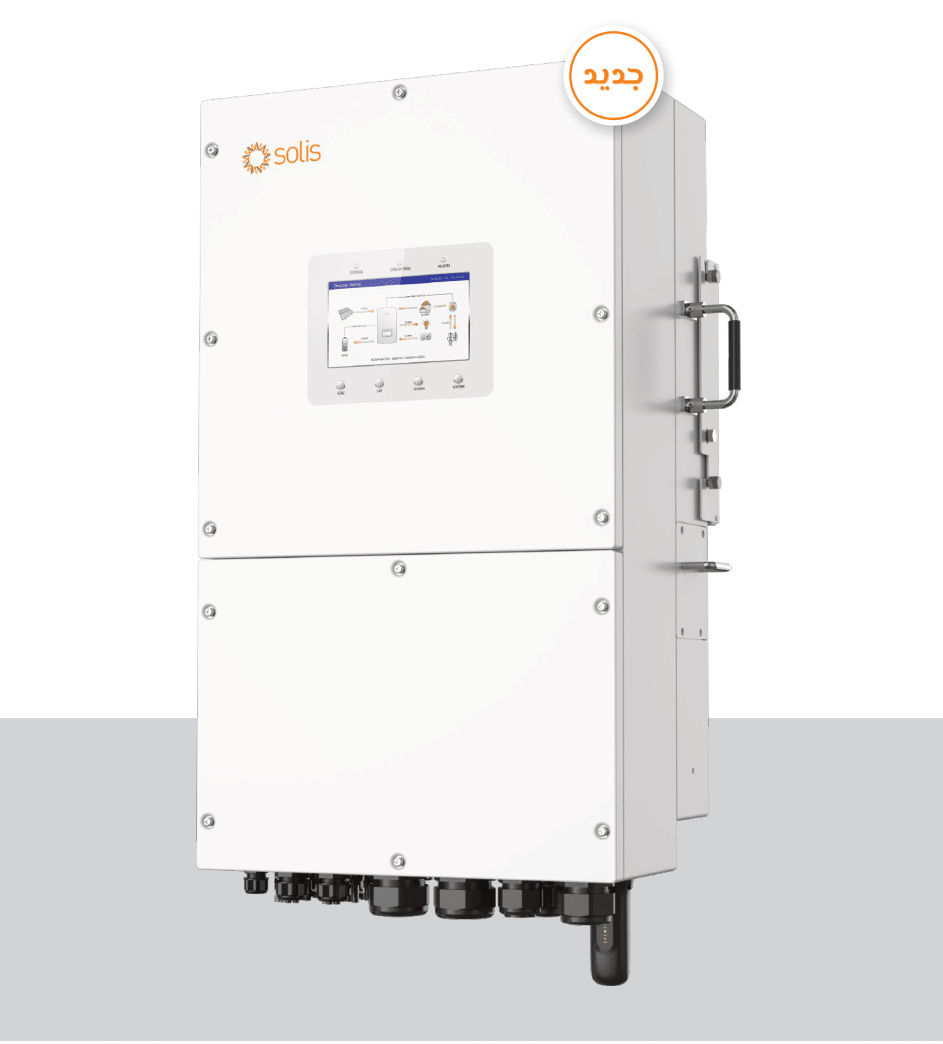

Solis Single Phase Low Voltage Energy Storage Inverters S6-EH1P(3-8)K-L-PLUS
Features
- Generator Compatible: Extends backup duration during grid outages.
- Microgrid Capability: Multiple inverters can form a microgrid.
- Dual Backup Ports: Intelligent control of critical and non-critical loads.
- High Surge Capability: 200% overload for 10 seconds.
- Seamless Switchover: Automatic switchover time <4ms.
- Grid Stability: Stable power during weak grid or generator fluctuations.
Solis Three-Phase Low Voltage Energy Storage Inverters S6-EH3P(8-15)K02-NV-YD-L
Features
- Generator Compatibility: Extends backup duration during grid outages.
- Microgrid Capability: Multiple inverters can form a microgrid.
- Dual Backup Ports: Intelligent control of critical and non-critical loads.
- High Surge Capability: 200% overload for 10 seconds.
- Supports High Input Current: Up to 40A input, ideal for high-power PV panels.
- Battery Charging/Discharging: Maximum charging/discharging current of up to 290A.
- Unbalanced Loads Support: Compatible with unbalanced loads and half-wave loads.
- Seamless Switchover: Automatic switchover in <10ms.
