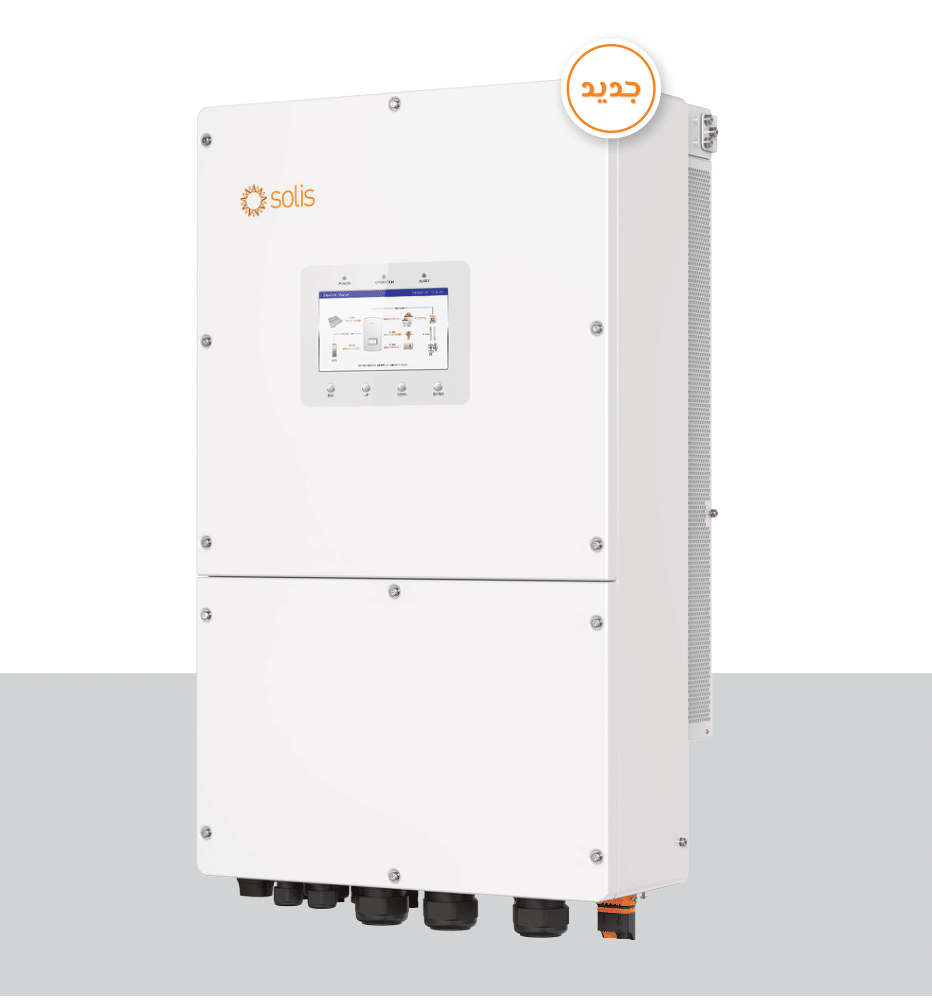

Solis High Voltage Three-Phase Energy Storage Inverters S6-EH3P(30-50)K-H

Features

  • High Surge Capability: Supports 160% overload for 2 seconds.
  • Wide Battery Voltage Range: Compatible with mainstream high-voltage lithium-ion batteries.
  • Real-Time Battery Monitoring: Enables remote upgrades and battery healing for extended battery life.
  • Peak Shaving Modes: Supports peak shaving in “self-use” and “generator” modes.
  • Unbalanced Loads Support: Compatible with unbalanced and half-wave loads on grid and backup ports.
  • Intelligent Cooling: Advanced fan cooling for consistent performance.
  • High Charging/Discharging Current: Up to 140A for efficient energy storage and utilization.
Compare
Add to wishlist
Categories: ,
Solis
Description

Technical Specifications

Input DC (PV Side)

Parameter 30K 40K 50K
Max PV Array Size (kW) 60 80 100
Max Usable PV Input Power (kW) 60 80 96
Max Input Voltage (V) 1000 1000 1000
MPPT Voltage Range (V) 150-850 150-850 150-850
Max Input Current (A) 3×40 3×40 3×40
Brand

Brand

Solis

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Solis High Voltage Three-Phase Energy Storage Inverters S6-EH3P(30-50)K-H”

Your email address will not be published. Required fields are marked *

Attachment

Download PDF

Download
