LV ENERGY STORAGE

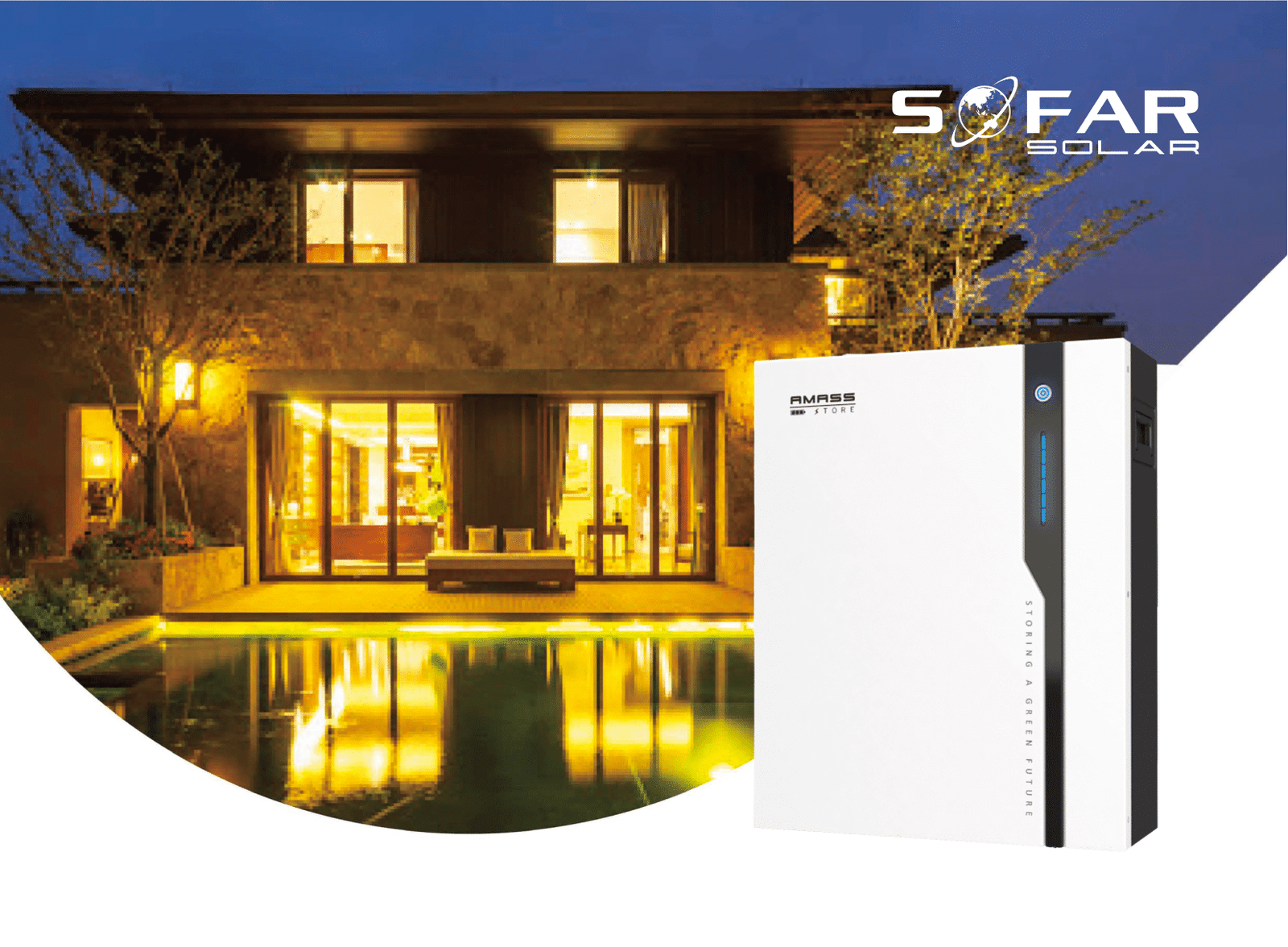

Datasheet GTX5000-PRO

Basic Parameters

• Battery type: LFP
• Nominal capacity (Ah): 100
• Nominal voltage (Vdc): 51.2
• Total energy (Wh): 5120
• Usable energy (90% DOD) (Wh): 4600
• Charge voltage (Vdc): 55.68-56.16
• Discharge voltage (Vdc): 45.6-56.16
• Nominal charge current (A): 50
• Nominal charge power (W): 2560
• Max. charge current (A): 100
• Max. charge power (W): 5000
• Nominal discharge current (A): 50
• Nominal discharge power (W): 2560
• Max. discharge current (A): 100
• Max. discharge power (W): 5000
• Short current (A): 350
• Communication: RS232, RS485, CAN
• Working temperature: 0 ℃~55℃
• Storage temperature: ≤ 25℃: 12 months, ≤ 35℃: 6 months, ≤ 45℃: 3 months
• Operating humidity: < 95% RH
• Storage humidity: < 95% RH
• Max. operating altitude: ≤ 2000 m
• Scalable: Suggest up to 4
• Enclosure protection rating: IP20
• Net Weight (kg): 47
• Dimension (mm): 480171.5606
• Certification: IEC62619, UN38.3, IEC62040-1, SAA, etc.
• Cycle life: 6000 Cycles@ 80% DOD / 25℃ / 0.5C, 60% EOL
