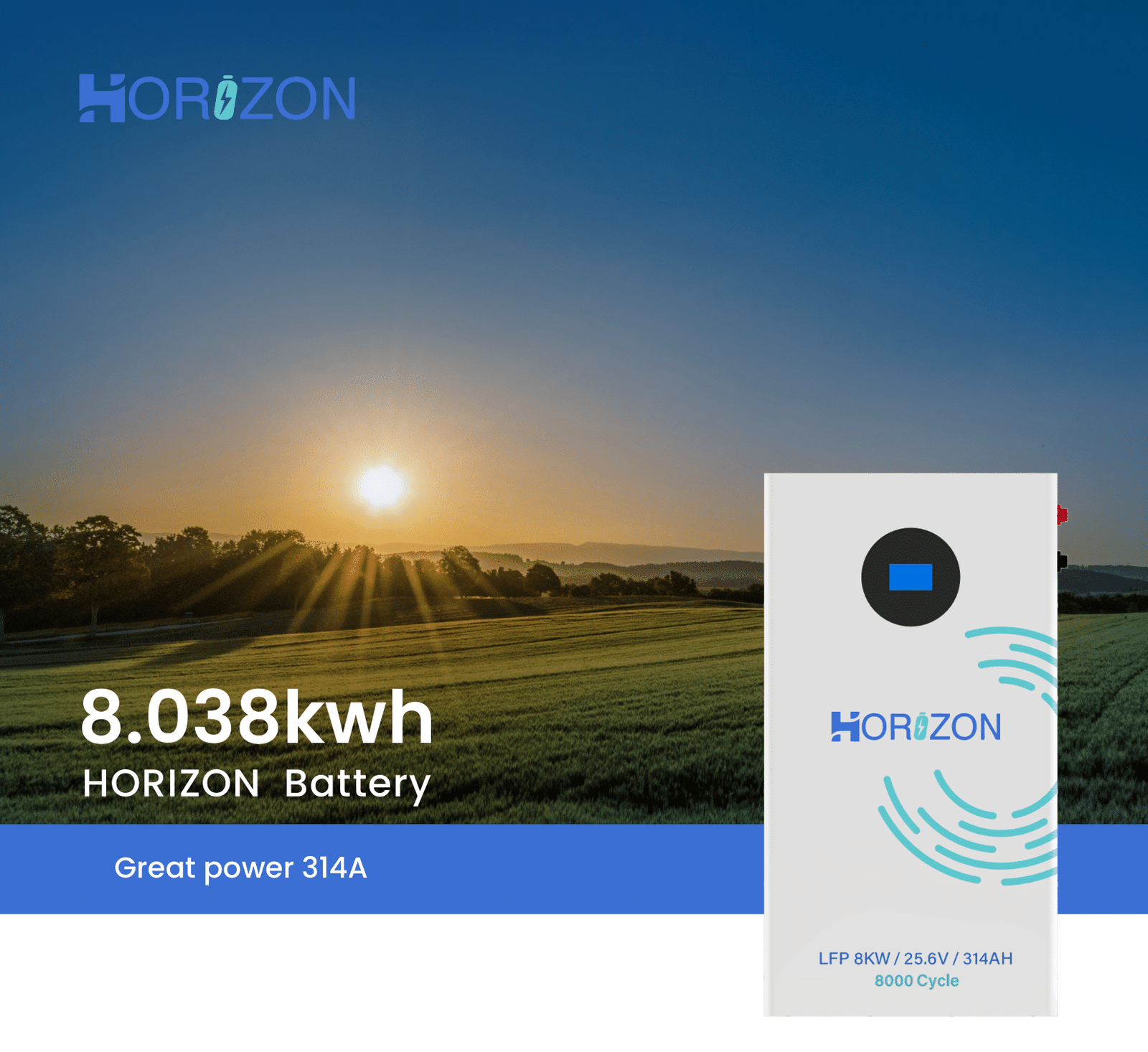

HORIZON BATTERY 8.038kWh

Product Features

  • Safe and Reliable: Uses LiFePO4 rechargeable battery technology.
  • High Usable Energy Ratio: Optimized for efficient energy utilization.
  • Low Self-Consumption: Reduces energy wastage.
  • LED Touch Display: Provides a user-friendly interface.
  • Wide Compatibility: Compatible with all inverters in the market.
Compare
Add to wishlist
Categories: ,
Horizon
Description

Technical Data

Specification Value
Battery Type LifePO4 (Lithium-ion phosphate)
Warranty 5 years
Cell Type Great power 314A
Nominal Energy (Wh) 8,038.4
Nominal Capacity (Ah) 314
Nominal Voltage (V) 25.6
Operation Voltage Range (V) 21.6 ~ 29.2
Recommended Charge/Discharge Current (A) 100
Max Continuous Charge/Discharge Current (A) 100
Peak Discharge Current (A) for 10 sec 200
Max Parallel Quantities (pcs) 15
Protection Degree IP51
Installation Options Wall-mounted
Communication CAN, RS485, RS232
Cycle Life 8,000 cycles (at 25°C, 0.5C/0.5C)
Dimension (mm) 503 (W) x 114 (D) x 933 (H)
Net Weight (kg) 69
Brand

Brand

Horizon

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “HORIZON BATTERY 8.038kWh”

Your email address will not be published. Required fields are marked *

Attachment

Download PDF

Download
